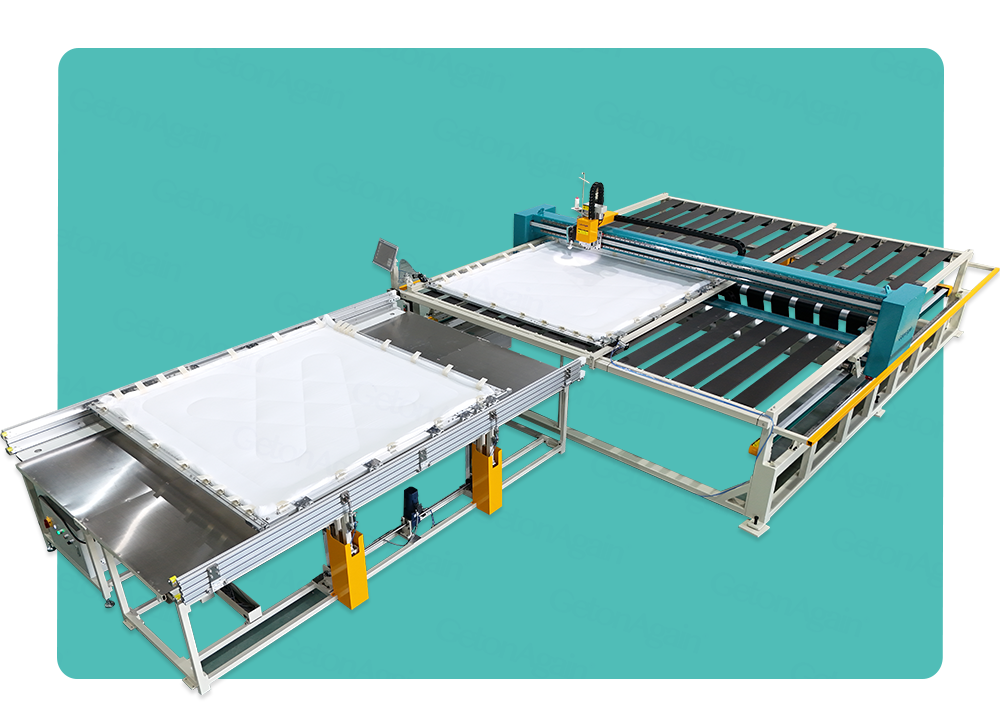

Computerized Single Head Quilting Machine - Frame Type (Belt Support)
Ideal for large-area, high-quality quilting on furniture upholstery, sofas, headboards, soft beds, conference enclosures, or heavy gravity quilts.
.png)
Please wait a moment. The video is loading...
Equipment Advantages
- Specially designed quilting head with independent presser-foot drive for various material thicknesses.
- Automatic lifting head (up to 15 cm) for quick frame change.
- Belt support prevents material sagging during quilting.
- 1:1 fixed frame design—head and saddle move separately in X/Y directions—minimizes floor space.
- Max. 3000 RPM; speed auto-adjusted by thickness.
- Extendable quilting frame allows free size adjustment.
- High-precision frame ensures stable needle-hook clearance and longer rotary-hook life.
- Imported large-capacity rotary hook reduces bobbin changes.
- Thread-break detection: auto-stop and return to break point.
- Full servo drive delivers high quilting accuracy.
- Optional extendable auto-loader or pneumatic frame changer.
Equipment Models
| Model | Working Area (mm) | Power (kw) | Machine Installation Size (L×W×H) |
|---|---|---|---|
| GOAQP-NM-S1S-1-2500×2600-SDM-LS50-VR2-SBD-3P380 | 2500mm×2600mm | 4kW | 4460mm×4030mm×1500mm |
| GOAQP-NM-S1S-1-2600×2800-SDM-LS50-VR2-SBD-3P380 | 2600mm×2800mm | 4kW | 4540mm×4100mm×1500mm |
| GOAQP-NM-S1S-1-2800×3000-SDM-LS50-VR2-SBD-3P380 | 2800mm×3000mm | 4kW | 4680mm×4340mm×1500mm |
| GOAQP-NM-S1S-1-3200×3200-SDM-LS50-VR2-SBD-3P380 | 3200mm×3200mm | 4kW | 5040mm×4800mm×1500mm |
×
