Automatic Ultrasonic Quilting Machine

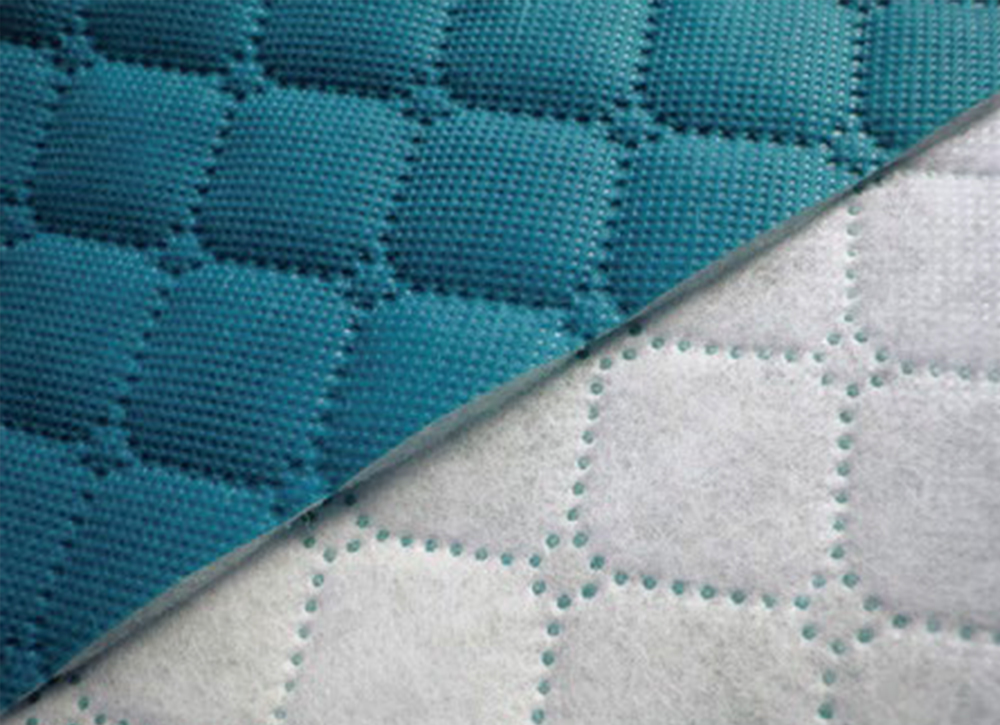

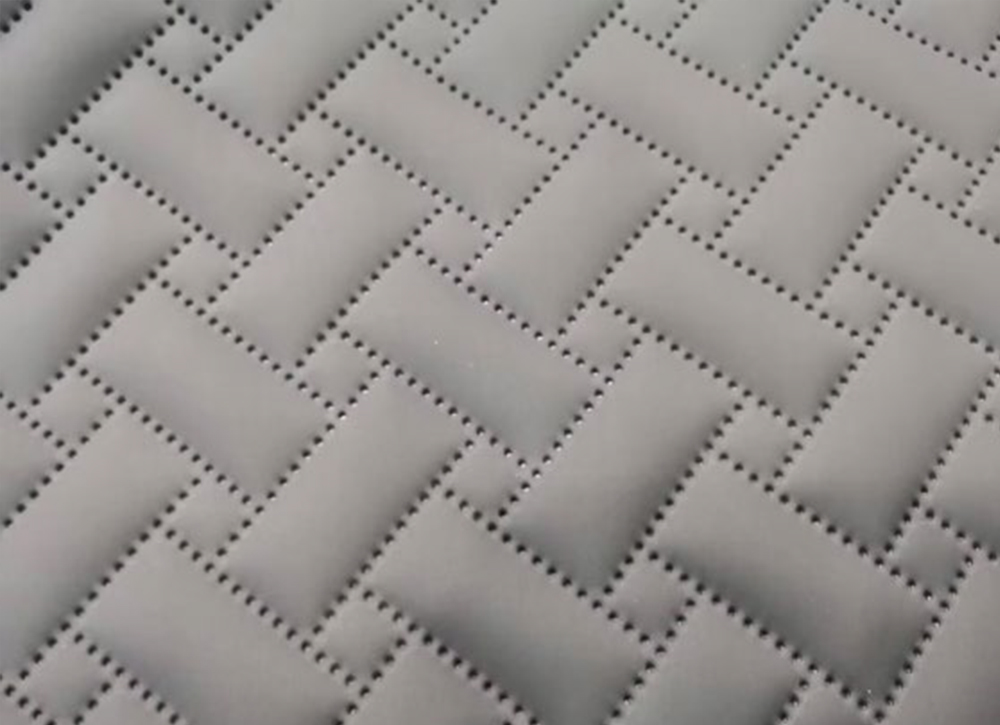

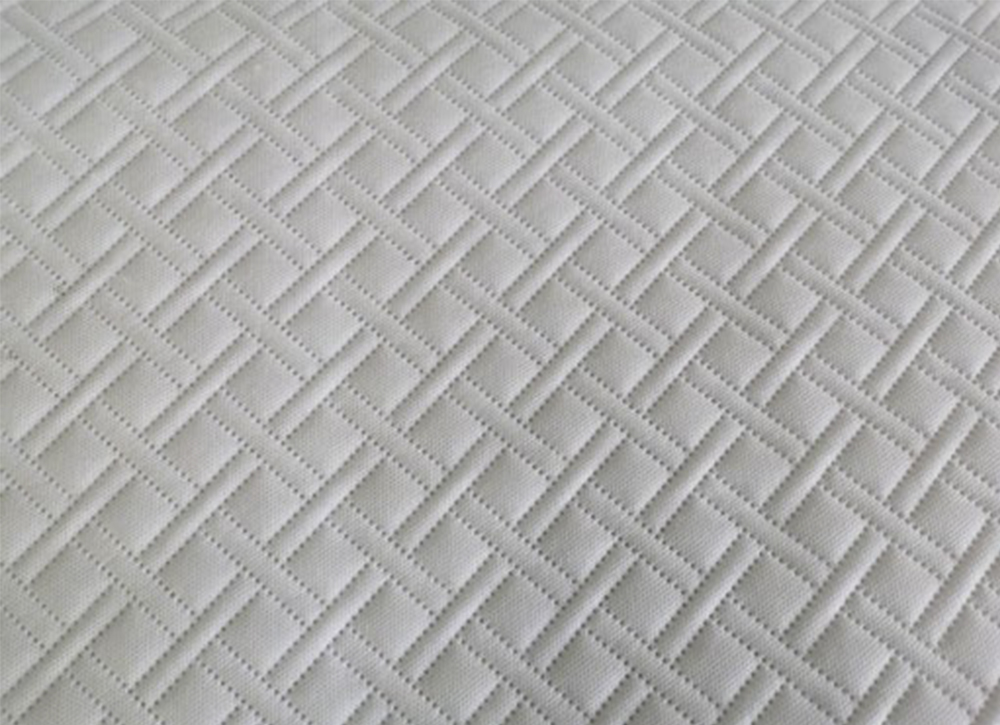

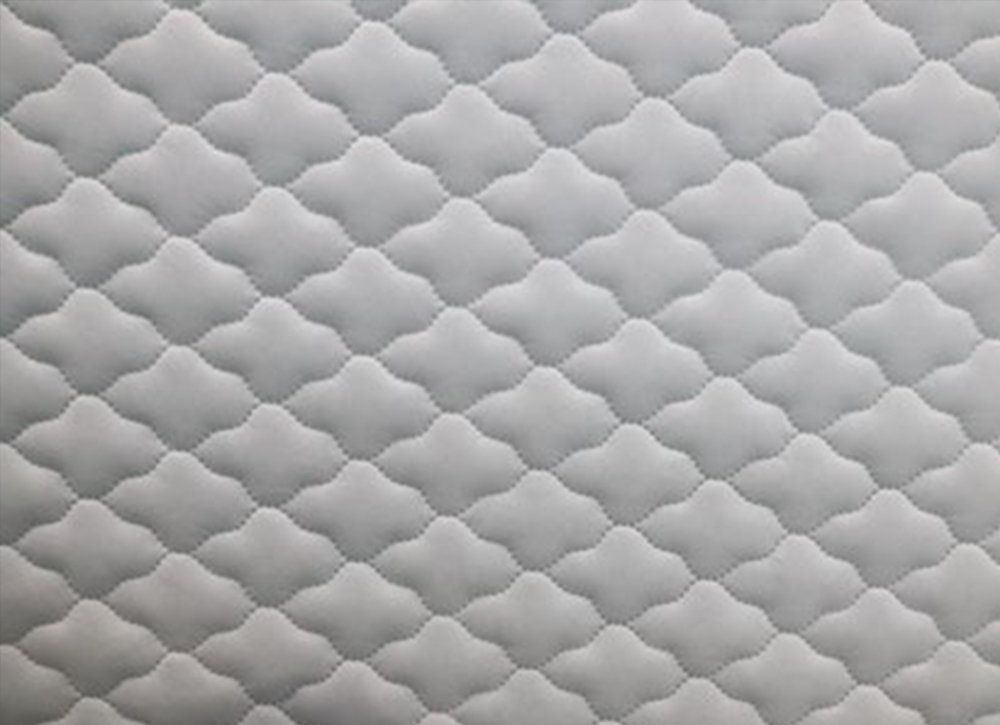

Ultrasonic quilting machine, to bond multi-layer of polyester fabric, non-woven fabric, polyester wadding, or artificial leather, etc., and emboss different patterns on it. Patterns are clear and beautiful, and fabric doesn't deform, with strong bonding and high efficiency. Quilting width is from 1.2m to 3.2m, and different designs can be done on different pattern rollers.
.png)
Equipment Advantages
- Integrated Design: Combines ultrasonic sewing, ultrasonic edge sealing, and cutting automation into one step.
- Latest Structural Design: Features an interleaved transducer structure to ensure seamless and wrinkle-free embossing.
- Pattern Roller Replacement: Different pattern designs can be achieved simply by replacing the pattern roller.
- Powerful Ultrasonic Generator: Equipped with a 1.5KW, 18KHz ultrasonic generator with a digital chassis, delivering strong sound waves and excellent welding results.
- Adjustable Edge Cutter: The edge cutter position can be manually adjusted to meet various cutting requirements.
- High Production Efficiency: Maximum working speed of 9m/min (depending on material and welding thickness), with an output 3-5 times higher than that of a stitching machine.
- Automatic Scrap Collection: Devices on both sides for convenient waste material collection and further treatment.
- Connectivity: After quilting, it can be connected to a cutting machine for finished products or to a rewinding device for fabric rolls.
- Independent Ultrasonic Chassis: Housed in a separate cabinet for easy adjustment of the ultrasonic generator.
Equipment Models
| Model | Net Weight (kg) | Machine Installation Size (L×W×H) |
|---|---|---|
| GOA-QC-NM-U-12-2300-UB-NA-3P380 | 2500kg | 5500x4500x2000mm |
| GOA-QC-NM-U-13-2600-UB-NA-3P380 | 2800kg | 5500x4800x2000mm |
| GOA-QC-NM-U-15-2900-UB-NA-3P380 | 3100kg | 5500x5100x2000mm |
Machine Features
<p><br></p>
×
